Built work / St Heliers, Auckland
St Heliers Townhouse
An open gable with opal acrylic and a custom street-facing frame.
Discover the project- Location
- St Heliers, Auckland
- Form
- Gable
- Footprint
- 6.0 m × 3.0 m
- Completed
- 2024
Make it your starting point
A 6 × 3 m gable.
Adapted to your home.
Start with this project’s roof shape and footprint, then adjust the design for your own space.
The designer uses standard acrylic and a standard end frame. It does not reproduce this project’s opal tint, custom end-frame pattern or 2.7 m height. House attachment, ridge direction and height start from model defaults for you to discuss with us.
Start with this roof shape and size01 / The brief
Designed for this place.

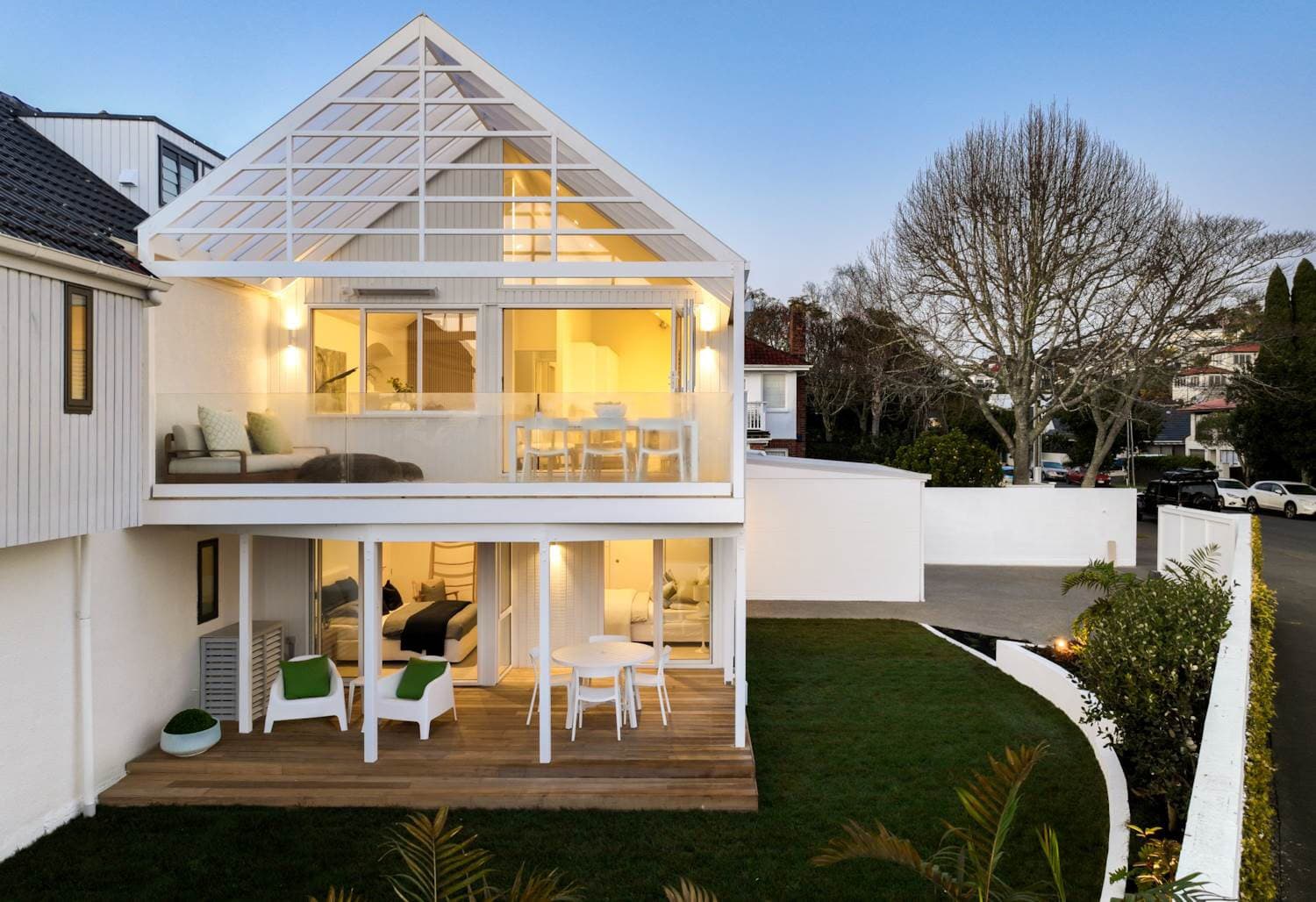

Extend the roofline while giving the street-facing gable end an intentional architectural pattern.
The clients wanted to extend their roofline with a gable shape and add a custom aluminium framing pattern to the gable end so the pergola would look intentional from the street.
We set out a 6 m by 3 m cover at 2.7 m height, selecting opal acrylic roofing in response to the brief for daylight and glare. The bespoke aluminium pattern gives the open, street-facing gable end a clear identity.
Opal acrylic over an open gable form
02 / In detail
How it
comes together.
Dimensions, finishes and details from this completed project.
Discuss a similar project- Pergola form
- Gable
- Dimensions
- 6.0 m W × 3.0 m D × 2.7 m H
- Covered area
- 18.0 m²
- Roof approach
- Opal acrylic over an open gable form
- Structure & finish
- Aluminium, Opal acrylic

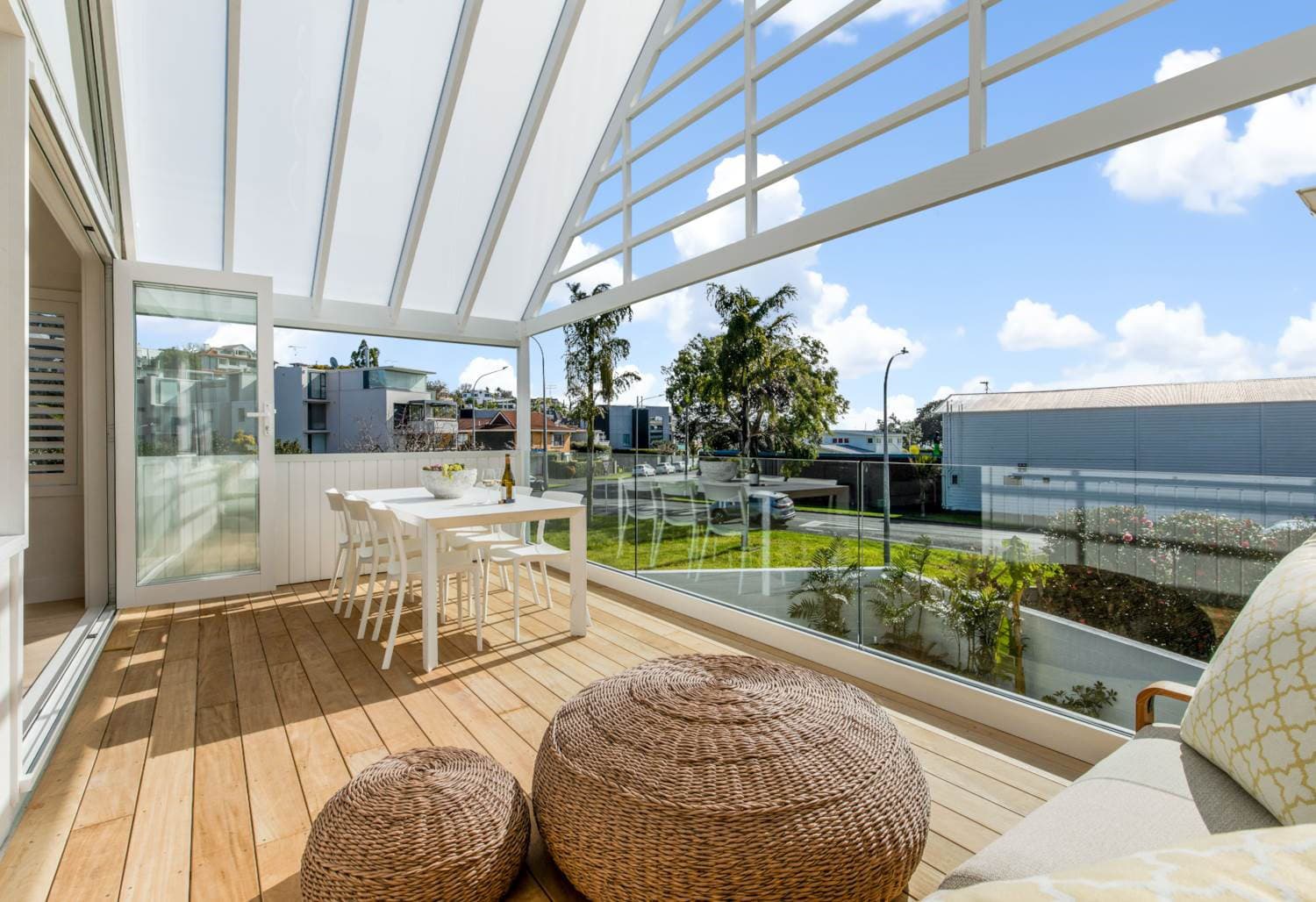

03 / Around the space
Look a little closer.
The frame, roof and living space, seen from every side.
Image 1 of 2
