Mt Maunganui Box

First-floor box-perimeter pergola with opal acrylic roofing, built to extend a dark contemporary home with soft filtered light and a clean roofline.

Discuss a similar project

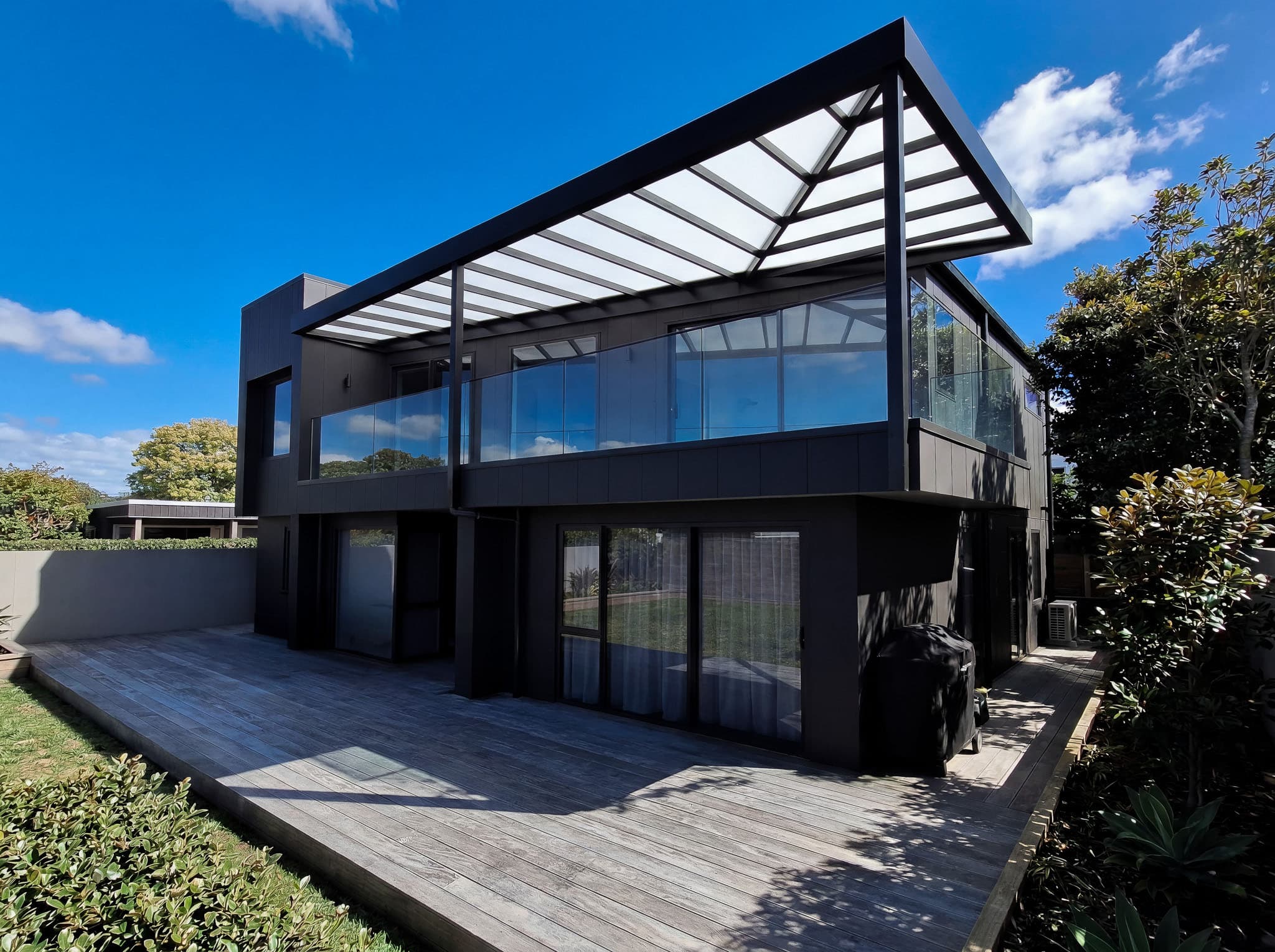

First-floor box-perimeter pergola with opal acrylic roof on a dark Mt Maunganui home — 02 · Mt Maunganui, Bay of PlentyBox-perimeter · Residential

Project facts

Built details.

Built details8.67 m W × 3.1 m D6 mm opal acrylic at a 5 degree fall with a hip-style end junction

Project type: Residential
Pergola form: Box-perimeter
Region: Bay of Plenty
Dimensions: 8.67 m W × 3.1 m D
Covered area: 26.9 m²
Roof pitch: 5°
Roof approach: 6 mm opal acrylic at a 5 degree fall with a hip-style end junction
Structure & finish: Powder-coated aluminium, Opal acrylic
Completed: 2025

Selected details

Hip
Opal acrylic
First-floor deck
Aluminium

Case study

The brief and response.

The original brief

The brief

This Mt Maunganui project covers a first-floor deck on a contemporary dark-clad home, creating a sheltered outdoor space without making the interior or deck feel heavy. The box-perimeter frame gives the structure a strong architectural edge, while the opal acrylic roof softens glare and keeps daylight moving through the deck and adjacent rooms.

Design constraint

Cover a first-floor deck while preserving the glass balustrade, outlook and natural light.

Sanctuary's response

The roof was set out with a 5 degree fall and a hip-style junction at the outside end, allowing the cover to follow the deck geometry while keeping the perimeter line crisp from below and from the garden. Dark aluminium framing ties back into the house cladding and joinery, so the pergola reads as part of the original architecture rather than an add-on.

Project gallery

See the project in detail.

Swipe or use the controls to review the project on smaller screens.

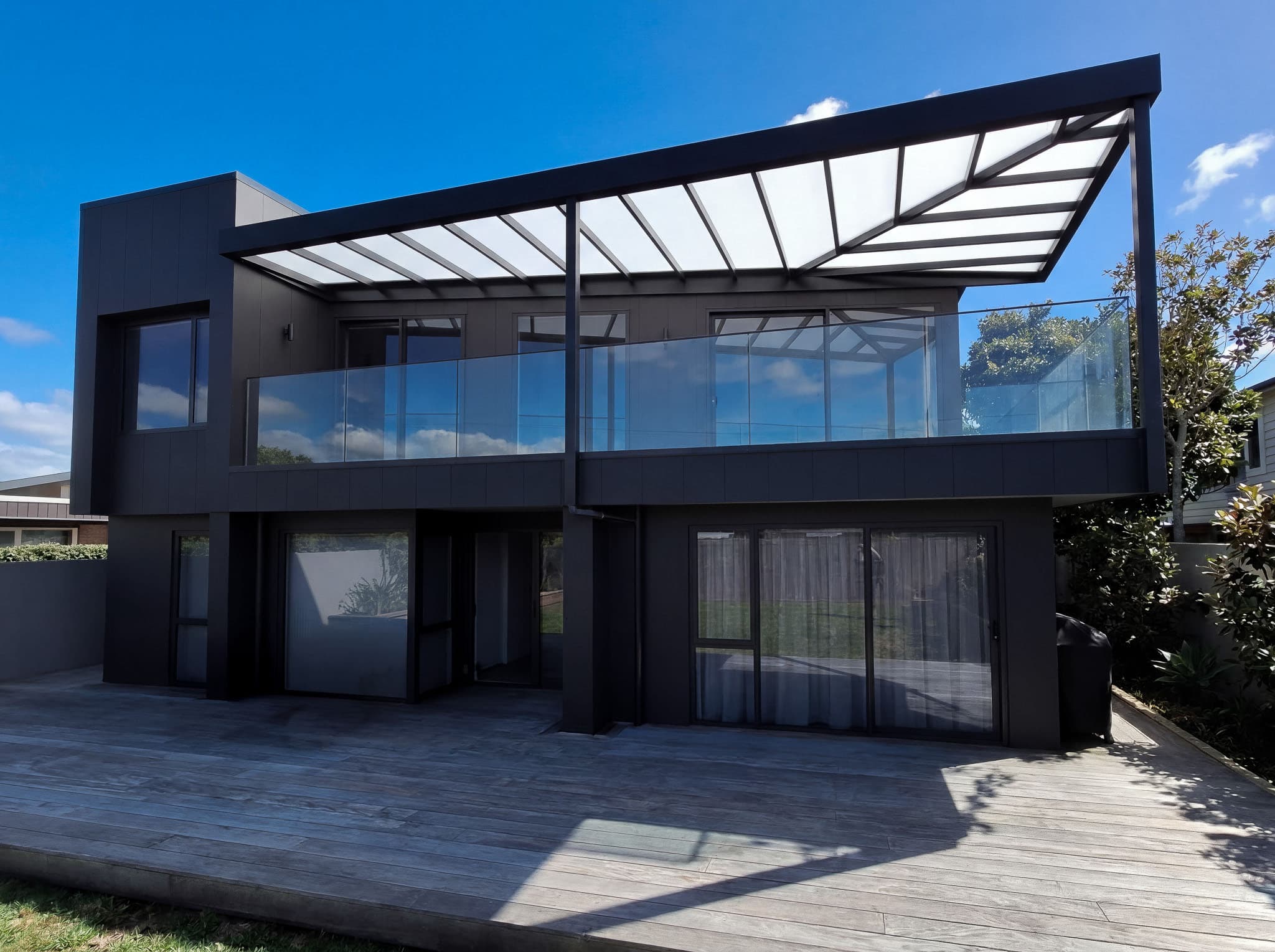

01Front view of the Mt Maunganui first-floor deck cover with dark aluminium framing

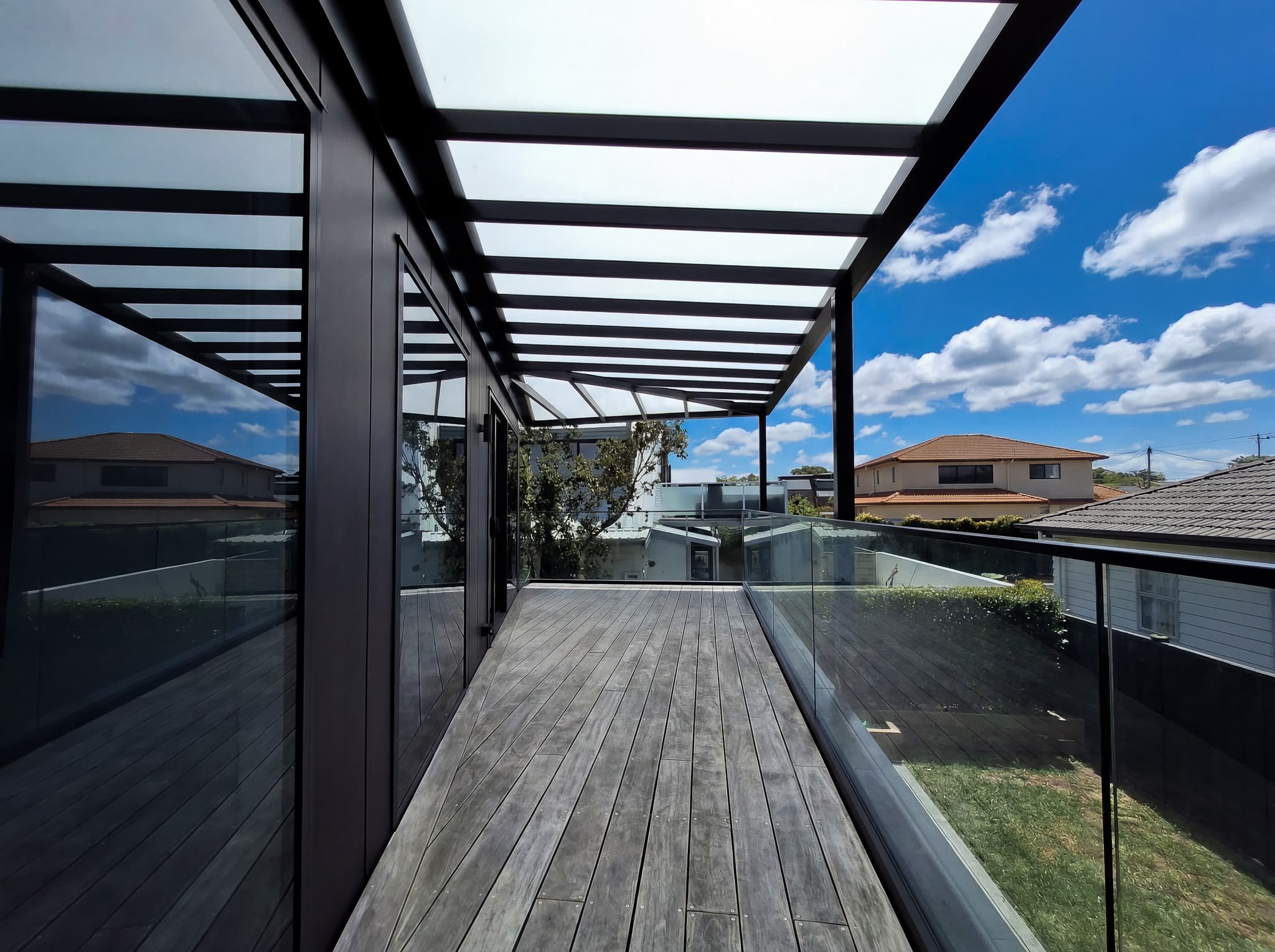

02View beneath the opal acrylic pergola roof along the first-floor deck at Mt Maunganui

Image 1 of 2

Project detailMaterials and technical details.

Structure & finish

The pergola uses a dark powder-coated aluminium frame with a strong box perimeter. The plan calls up 300 x 50 mm aluminium beams, 100 x 50 mm aluminium rafters and 150 x 150 mm posts, giving the deck cover a clean, deliberate profile.

Dark aluminium box-perimeter frame
300 x 50 mm beam and 100 x 50 mm rafter layout
150 x 150 mm posts positioned to keep the deck edge open

Roof & glazing

Opal acrylic roofing gives the space a soft, even light quality. The 5 degree fall manages drainage while the hip-style end detail resolves the angled deck geometry inside the perimeter frame.
