Screens and edge treatments / Drop-down blinds

Drop-down blinds

Lower one edge for sun, privacy or exposure, then open it again.

Fabric, guides, opening size and wind conditions change what a blind can do. The headbox, power and clearances should be designed into the pergola rather than attached as an afterthought.

Explore the details

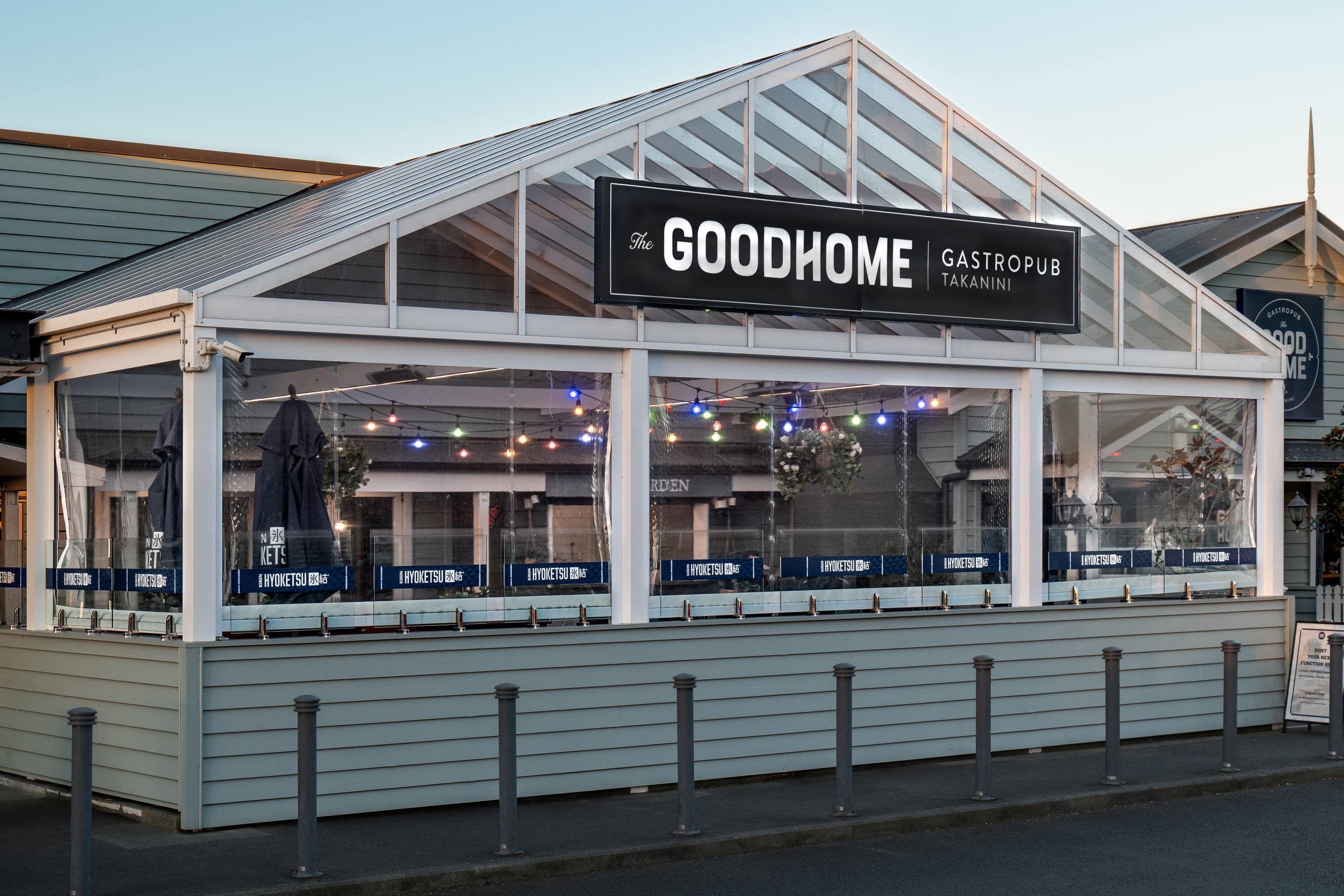

Clear blinds deployed along the edge of The Good Home covered courtyard — The Good Home TakaniniA built example

01 / The right fit

Start with the space.

Drop‑down blinds give adjustable control of low sun, privacy and exposure at selected edges. Fabrics range from clear PVC to open‑weave meshes, while side channels or guides are chosen for the measured opening and current system limits.

Works well when

Low sun, privacy or exposure changes through the day.
The opening needs to return to a fully open state.
The frame can take the selected headbox, guides and operating clearances.

We’ll resolve together

Clear PVC or mesh and the view-through it provides.
Manual or motorised operation and power provision.
Opening size, guide system, wind limitations and operating guidance.

02 / What to consider

Resolve the
whole picture.

Consider the materials, installation and everyday use together.

Control versus openness

A deployed blind changes the view and air movement. Rolled away, it leaves the edge open but the headbox remains visible.

View-through versus privacy

Fabric openness and lighting conditions affect what can be seen in both directions.

Convenience versus coordination

Motorisation can simplify use but needs compatible controls, power and service access.

Specification & care

The details that follow the design.

Materials and specification

A manual crank or motorised tube rolls the fabric into a compact headbox. Depending on the selected system, side channels or guides locate the fabric edges, and compatible controls may include remotes, wall switches or sensors.

Maximum opening size and operating limits are confirmed from current manufacturer data

Controls and sensor behaviour depend on the selected side-channel or guide system

Extruded aluminium headboxes, side channels or cable guides
Clear PVC or mesh fabrics with welded hems
Weighted bottom bars and sealed end caps

Manual crank or motorised operation (remote or wall switch)

Sensors and grouped controls where supported by the selected system

Fabric openness and colours to suit privacy and outlook

Installation and maintenance

Supplier availability and the on-site sequence are confirmed for the selected blind system and measured openings

Cleaning, drying and operating care follow the current written guidance for the exact fabric and blind system

Will mesh keep rain out?

No blind should be treated as a universal weather seal. Mesh and clear PVC respond differently, and wind-driven rain can enter at edges and openings. Confirm the selected system and its published limitations.

Do motors need power on the pergola?

Yes. Motorised blinds require power supplied by a licensed electrician.
